Power saving battery drive type

16ch ACM Data Logger

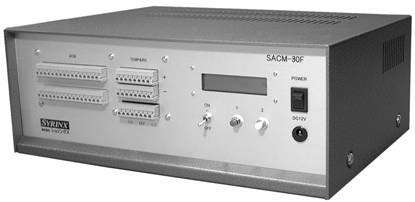

SACM-30F





FEATURES

・     SACM-30F can log the data of ACM (Atmospheric Corrosion Monitor).

・     This can be measured for a long term with a battery.

・     Data is saved in Compact Flash Memory.





SPECIFICATIONS

Function	Data logger
Input channels	ACM sensor …16ch Humidity … 4ch Temperature … 4ch
Current Ranges	10nA、100nA、1uA、10uA、100uA、1mA、10mA、100mA Automatic change and with noise reduction filter
Liquid crystal display	2 digit 16 line (no back light)
Power supply	DC12V
Dimension	W 350mm×D 262mm×H 140mm
Weight	3.2kg



Syrinx. Inc

7-17-5 Ginza Thuo-ku Tokyo 104-0061 JAPAN TEL：+81-3-5565-1684 FAX：+81-3-3524-0508
