ACM (Atmospheric Corrosion Monitor) type corrosion sensor

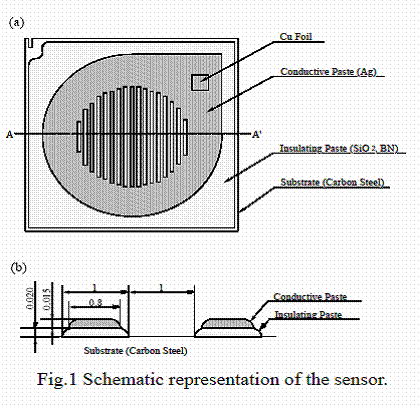

In this sensor, an ammeter is connected between a base plate of carbon steel and an Ag electrode, and the current which passes between the two electrodes is measured as the sensor output. Because the sensor output increases as environmental corrosiveness becomes more severe, it is possible to estimate and evaluate factors related to environmental corrosiveness (Corrosion rate (µm/year), wetting condition, amount of deposited sea salt, etc.) by analyzing the magnitude and change over time in the sensor output. This sensor, which is being used to develop evaluation methods for environmental corrosiveness, centering on the Corrosion Group, is commercially available in products approved by the Corrosion Center of the Japan Society of Corrosion Engineering, and is widely used in a variety of fields.

Specification

Substrate

Fe or Zn

Sensor output

0.1nA1mA

Detection limit of corrosion rate

2µm/year

Detection of sea salt

0.001g/m210 g/m2

Time for

2 month (In an oceanic region at the exposure. )

Interelectrode resistance

10GΩ or more
