Power saving and small waterproof type

4ch ACM Data Logger

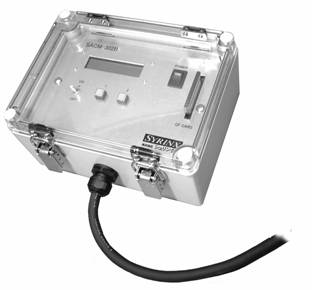

SACM-304B

�@�@�@�@Adobe Systems

��ACM sensors�@�@�@

FEATURES

�E     SACM-304B can log the data of ACM (Atmospheric Corrosion Monitor).

�E     This can be measured for a long term with a battery.

�E     Data is saved in Compact Flash Memory.

�E     This main body is a waterproof case specification. So it can be used in the outdoors. (But, the battery and the terminal part are not a waterproof.)



SPECIFICATIONS

Function

Data logger

Input channels

ACM sensor �c4ch

Humidity �c1ch

Temperature �c1ch

Current Ranges

10nA�A100nA�A1uA�A10uA�A100uA�A1mA�A10mA

Automatic change and with noise reduction filter

Liquid crystal display

2 digit 16 line (no back light)

Power supply

DC9�`12V

Dimension

W 200mm�~D 150mm�~H 100mm

Weight

About 1kg (It doesn't contain the battery.)



Syrinx. Inc

7-17-5 Ginza Thuo-ku Tokyo 104-0061 JAPAN TEL�F+81-3-5565-1684 FAX�F+81-3-3524-0508

URL: http://www.syrinx.co.jp/
Mail: info��syrinx.co.jp
